Band Saw Blades
Our company pioneer in manufacturing Wood Cutting Band Saw Blades and our brand GANESH SUPER (Since 1992) is the oldest serving Brand in the country at a PAN INDIA level with the single family owner. Our Band Saw Blades are available from 9mm width to 250mm width and 0.50mm thickness to 2.25mm thickness. Band Saw Blades are mainly categorised between Narrow Bandsaws and Wider Bandsaws for which please refer to the table below.
Stamping:- We provide multiple type of Stamping on the Band Saw Blades. 1) Stickers, 2) Embossing, 3) Black Colour inkjet, 4) Blue Colour Inkjet
The teething process of our Band Saw Blades is highly precise with modern and superfast machines which gives 420 teeth per minute and are installed with laser sensors which measure the length of Band Saw Blades in real time which keeps the check on any major thickness variation on the blade. Our inhouse calibrated Hardness tester is used to test the hardness of each lot of Band Saw Blades. Our Trusted age old Thread method is used to check the straightness of each lot of Bandsaw Blade which is done at 2 levels and if any discrepancy is found, it is solved through our strip straightener machine.
All these processes are mapped and audited through our Production Management System (P.M.S.) which accounts for every production planned through a unique set of Production Number.
Band Saw Blades Manufactured by us are one of the best wood cutting saw present in the market. Our band saw blades ranges from different widths to different thickness and lengths. This provides you with more options to choose from. Superior quality materials are used by us to manufacture these top class band saw blades.
Manufactured from Hardened & Tempered High/Medium Carbon Alloy Steel and Nickel Chrome Steel Strips.
- Working : For Cutting Wood Logs
- Size Range : Narrow Band Saw Blade -> 6mm and goes up to 50mm wide.
Wider Band Saw Blade -> From 57mm up to 260mm wide. - Thickness : 0.50mm to 1.65mm
- Teeth* : Cross Cut teeth and Ripping teeth.
- T.P.I.* : 1 to 5.
1) Narrow Band Saw Blade *
| Width | Thickness (mm) | No. Of Teeth Per Inch (T.P.I) | Teeth Type |
|---|---|---|---|
| 6 mm | 0.50 | 5, 4 | Cross Cut |
| 9 mm | 0.50 | 5, 4 | Cross Cut |
| 12 mm | 0.50, 0.55 | 5, 4 | Cross Cut |
| 15 mm | 0.50, 0.55 | 5, 4 | Cross Cut |
| 19 mm | 0.50, 0.55 | 5, 4 | Cross Cut |
| 25 mm | 0.55, 0.60 | 5, 4, 3 | Cross Cut |
| 32 mm | 0.55, 0.60, 0.70 | 4, 3 | Cross Cut |
| 38 mm | 0.60, 0.70, 0.80 | 4, 3 | Cross Cut |
| 44 mm | 0.70, 0.80 | 4, 3 | Cross Cut |
| 50 mm | 0.70, 0.80, 0.90 | 3, 2 | Cross Cut |
2) Wider Band Saw Blade *
| Width | Thickness (mm) | No. Of Teeth Per Inch (T.P.I) | Teeth Type |
|---|---|---|---|
| 57 mm | 0.90, 1.00 | 2 | Cross Cut |
| 63 mm | 0.90, 1.00 | 2 | Cross Cut |
| 76 mm | 1.00, 1.20 | 2 | Cross Cut, Ripping |
| 105 mm | 1.25, 1.30 | 1, 3/4 | Cross Cut, Ripping |
| 125 mm | 1.20, 1.30 | 1, 3/4 | Cross Cut, Ripping |
| 152 mm | 1.20, 1.30 | 1, 3/4 | Ripping |
| 180 mm | 1.20, 1.45 | ½ | Ripping |
| 260 mm | 1.65 | ½ | Ripping |
(*) Sizes and teeth shape can also be provided as per customers' requirement. The above table indicates the sizes which we have already provided/providing to our customers.
Stamping
We can provide various types of stamps on the blades like etching black colour stamp, stickers, etc.

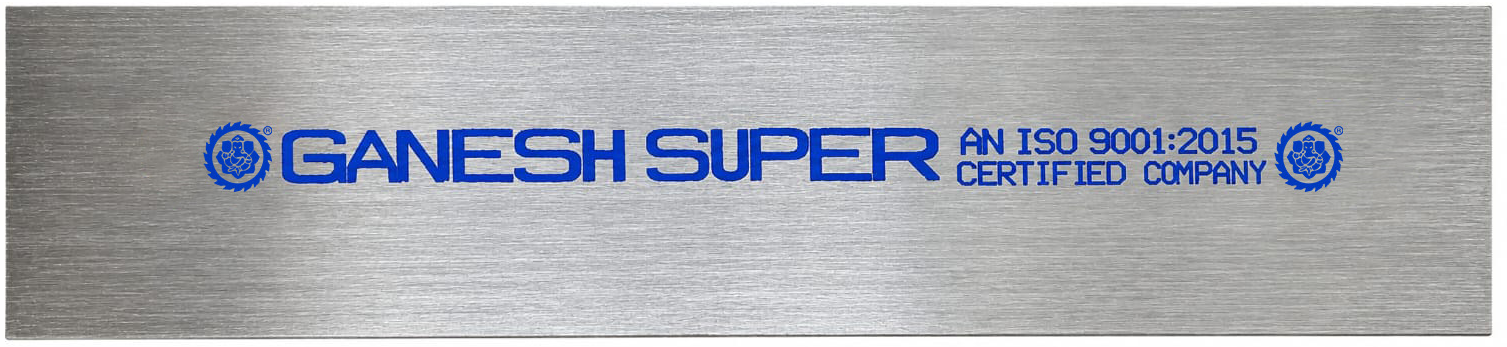

We have the option of providing our customers with BLUE COLOUR STAMP on the blades with sizes and batch number printed along with the brand names. This stamp is imprinted on the band saw blade by computerized printers, which leave its prints at regular specified intervals. Due to the high end computerized stamping machine we are able to give accurate and clear stamps at the required distance with various types of other descriptions. Please see below the picture of this stamp.
